Six mobilities -- arbitrary relative motion modeled as x-y-z translation followed by an x-y-z body-fixed Euler angle sequence, though with a singularity when the middle angle is +/- 90 degrees. More...

#include <MobilizedBody_Bushing.h>

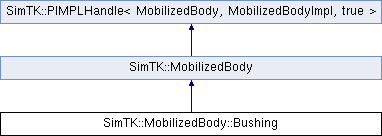

Inheritance diagram for SimTK::MobilizedBody::Bushing:

List of all members.

Public Member Functions
	Bushing ()
	Construct an empty handle that can be assigned to reference any MobilizedBody::Bushing.
	Bushing (MobilizedBody &parent, const Transform &X_PF, const Body &bodyInfo, const Transform &X_BM, Direction=Forward)
	Create a Bushing mobilizer between an existing parent (inboard) body P and a new child (outboard) body B created by copying the given bodyInfo into a privately-owned Body within the constructed MobilizedBody object.
	Bushing (MobilizedBody &parent, const Body &bodyInfo, Direction=Forward)
	Abbreviated constructor you can use if the mobilizer frames are coincident with the parent and child body frames.
Bushing &	setDefaultInboardFrame (const Transform &X_PF)
	Change the default inboard ("fixed") frame F on the parent body of this mobilizer.
Bushing &	setDefaultOutboardFrame (const Transform &X_BM)
	Change the default outboard ("moving") frame M on this mobilized body (that is, on this mobilizer's child body).
Bushing &	setDefaultTransform (const Transform &X_FM)
	Override the default pose for this mobilizer.
Transform	getDefaultTransform () const
	Return the default pose for this mobilizer as a Transform.
Bushing &	addBodyDecoration (const Transform &X_BD, const DecorativeGeometry &g)
	Add DecorativeGeometry to the privately-owned Body contained in this MobilizedBody, positioned relative to the body's frame.
Bushing &	addOutboardDecoration (const Transform &X_MD, const DecorativeGeometry &g)
	Add DecorativeGeometry to the privately-owned Body contained in this MobilizedBody, positioned relative to the mobilizer's M frame on that body.
Bushing &	addInboardDecoration (const Transform &X_FD, const DecorativeGeometry &g)
	Add DecorativeGeometry to the parent (inboard) body of this mobilizer, positioned relative to the mobilizer's F frame on the parent body.
const Vec6 &	getDefaultQ () const
	Obtain the default value for the generalized coordinates q that has been set for this mobilizer.
Bushing &	setDefaultQ (const Vec6 &q)
	Set the default value for the generalized coordinates q for this mobilizer.
const Vec6 &	getQ (const State &state) const
	Obtain the current value for this mobilizer's generalized coordinates q from the given State, which must be realized through Stage::Model (these are state variables).
const Vec6 &	getQDot (const State &state) const
	Obtain the current value for this mobilizer's generalized coordinate time derivatives qdot from the given State, which must be realized through Stage::Velocity.
const Vec6 &	getQDotDot (const State &state) const
	Obtain the current value for this mobilizer's generalized coordinate second time derivatives qdotdot from the given State, which must be realized through Stage::Acceleration.
const Vec6 &	getU (const State &state) const
	Obtain the current value for this mobilizer's generalized speeds u from the given State, which must be realized through Stage::Model (these are state variables).
const Vec6 &	getUDot (const State &state) const
	Obtain the current value for this mobilizer's generalized accelerations udot (=d/dt u) from the given State, which must be realized through Stage::Acceleration.
void	setQ (State &state, const Vec6 &q) const
	Set new values for this mobilizer's generalized coordinates q in the given state.
void	setU (State &state, const Vec6 &u) const
	Set new values for this mobilizer's generalized speeds u in the given state.
Advanced/Obscure
Most users won't use these methods.
const Vec6 &	getMyPartQ (const State &state, const Vector &qlike) const
	Given a vector in the System's generalized coordinate basis, extract the six q's belonging to this mobilizer.
const Vec6 &	getMyPartU (const State &state, const Vector &ulike) const
	Given a vector in the System's generalized speed basis, extract the six u's belonging to this mobilizer.
Vec6 &	updMyPartQ (const State &state, Vector &qlike) const
	Given a writable vector in the System's generalized coordinate basis, extract a writable reference to the six q's in that vector that belong to this mobilizer.
Vec6 &	updMyPartU (const State &state, Vector &ulike) const
	Given a writable vector in the System's generalized speed basis, extract a writable reference to the six u's in that vector that belong to this mobilizer.

Detailed Description

Six mobilities -- arbitrary relative motion modeled as x-y-z translation followed by an x-y-z body-fixed Euler angle sequence, though with a singularity when the middle angle is +/- 90 degrees.

Use MobilizedBody::Free for a similar six-dof joint that is free of singularities.

The six generalized coordinates q are defined q={qx,qy,qz,px,py,pz} where the first three coordinates are the rotation angles and the last three are the Cartesian translations. Note that we follow the usual Simbody convention of having the rotational coordinates precede the translational ones; that does not imply any particular order of operations. In fact, as a sequence this mobilizer should be thought of as first translating the M frame by a vector p_FM=[px,py,pz] (expressed in F), then reorienting M about its new origin location using the rotation angles. In the reference configuration where q=0, the F and M frames are aligned and their origins coincident (Mo=Fo). The convention used here exactly matches the convention used by the force element Force::LinearBushing which infers an identical set of coordinates to express the relative pose of its two connected frames (also called F and M).

The first three generalized coordinates q should be interpreted as a series of rotation angles in radians: q[0]=qx is a rotation about the Mx (=Fx) axis, then q[1]=qy is a rotation about the now-rotated My axis, and then q[2]=qz is a rotation about the now twice-rotated Mz axis. These rotations do not affect the location of M's origin point Mo. The generalized speeds u for the Bushing mobilizer are just the time derivatives of the generalized coordinates, that is, u=qdot={qxdot,qydot,qzdot,vx,vy,vz}, where qxdot=d/dt qx, etc. and v_FM=[vx,vy,vz]=d/dt p_FM is the velocity of Mo measured and expressed in frame F. Note that this is different than the choice of generalized speeds used for MobilizedBody::Free, where the angular velocity vector w_FM is used as the three rotational generalized speeds instead of Euler angle derivatives. (Euler angle derivatives are not the same as angular velocity, except when q=0.)

While this mobilizer provides arbitrary orientation, the Euler angle derivatives are singular when q[1] (qy, the middle rotation) is near +/- Pi/2. That means you should not attempt to do any dynamics in that configuration; if you can't be sure the motion will remain away from that region, you should use a MobilizedBody::Free instead, which uses quaternions to ensure singularity-free rotation.

Here is another way to describe the meaning of a Bushing mobilizer: except for the ordering of the generalized coordinates, a Bushing between frames F on parent body P and frame M on child body B is exactly equivalent to a translation (Cartesian) mobilizer between F and a massless body B0, followed by a series of three pin joints using two massless intermediate bodies B1 and B2. The first pin joint rotates about the common B0x(=Fx) and B1x axes. The second rotates about the common B1y and B2y axes. The last one rotates about the common B2z and Mz axes. Other than performance (which is somewhat better if you use the Bushing since there are fewer bodies), the translation+pins+intermediate bodies system generates exactly the same mobility as the Bushing, but with coordinates q={px,py,pz,qx,qy,qz} (flipped from the Bushing coordinate ordering).

See also:: Force::LinearBushing, MobilizedBody::Free, MobilizedBody::Gimbal

Constructor & Destructor Documentation

SimTK::MobilizedBody::Bushing::Bushing ( ) [inline]

Construct an empty handle that can be assigned to reference any MobilizedBody::Bushing.

SimTK::MobilizedBody::Bushing::Bushing	(	MobilizedBody &	parent,
		const Transform &	X_PF,
		const Body &	bodyInfo,
		const Transform &	X_BM,
		Direction	= `Forward`
	)

Create a Bushing mobilizer between an existing parent (inboard) body P and a new child (outboard) body B created by copying the given bodyInfo into a privately-owned Body within the constructed MobilizedBody object.

Specify the mobilizer frames F fixed to parent P and M fixed to child B.

See also:: MobilizedBody for a diagram and explanation of terminology.

SimTK::MobilizedBody::Bushing::Bushing	(	MobilizedBody &	parent,
		const Body &	bodyInfo,
		Direction	= `Forward`
	)

Abbreviated constructor you can use if the mobilizer frames are coincident with the parent and child body frames.

Member Function Documentation

Bushing& SimTK::MobilizedBody::Bushing::setDefaultInboardFrame ( const Transform & X_PF ) [inline]

Change the default inboard ("fixed") frame F on the parent body of this mobilizer.

The supplied frame is given as a Transform from the parent body's frame P and replaces the F frame specified in the constructor. This is a topological change, meaning that you must call realizeTopology() again if you call this method.

Reimplemented from SimTK::MobilizedBody.

Bushing& SimTK::MobilizedBody::Bushing::setDefaultOutboardFrame ( const Transform & X_BM ) [inline]

Change the default outboard ("moving") frame M on this mobilized body (that is, on this mobilizer's child body).

The supplied frame is given as a Transform from the child body's frame B and replaces the M frame specified in the constructor. This is a topological change, meaning that you must call realizeTopology() again if you use this method.

Reimplemented from SimTK::MobilizedBody.

Bushing& SimTK::MobilizedBody::Bushing::setDefaultTransform ( const Transform & X_FM ) [inline]

Override the default pose for this mobilizer.

Normally the default is q=0, meaning that the F and M frames are aligned. Here you can provide a Transform giving the default pose of the mobilizer's M frame in the parent body's F frame. The given orientation will be converted to a body fixed x-y-z Euler sequence; the given position vector will be used directly. Those six values will be used to set the default values for the generalized coordinates q that will appear in a State that has just been created by a realizeTopology() call. This is a topological change, meaning that you must call realizeTopology() again if you use this method.

Transform SimTK::MobilizedBody::Bushing::getDefaultTransform ( ) const [inline]

Return the default pose for this mobilizer as a Transform.

See setDefaultTransform() for more information.

Bushing& SimTK::MobilizedBody::Bushing::addBodyDecoration	(	const Transform &	X_BD,
		const DecorativeGeometry &	g
	)		`[inline]`

Add DecorativeGeometry to the privately-owned Body contained in this MobilizedBody, positioned relative to the body's frame.

Reimplemented from SimTK::MobilizedBody.

Bushing& SimTK::MobilizedBody::Bushing::addOutboardDecoration	(	const Transform &	X_MD,
		const DecorativeGeometry &	g
	)		`[inline]`

Add DecorativeGeometry to the privately-owned Body contained in this MobilizedBody, positioned relative to the mobilizer's M frame on that body.

Reimplemented from SimTK::MobilizedBody.

Bushing& SimTK::MobilizedBody::Bushing::addInboardDecoration	(	const Transform &	X_FD,
		const DecorativeGeometry &	g
	)		`[inline]`

Add DecorativeGeometry to the parent (inboard) body of this mobilizer, positioned relative to the mobilizer's F frame on the parent body.

Reimplemented from SimTK::MobilizedBody.

const Vec6& SimTK::MobilizedBody::Bushing::getDefaultQ ( ) const

Obtain the default value for the generalized coordinates q that has been set for this mobilizer.

The value is returned as a Vec6 but note that the rotational part (first three elements) of the returned quantity is not a vector; it is a body fixed x-y-z Euler angle sequence in radians. The last three elements are a position vector p_FM. The default is q=0 unless overridden.

See also:: getDefaultTransform()

Bushing& SimTK::MobilizedBody::Bushing::setDefaultQ ( const Vec6 & q )

Set the default value for the generalized coordinates q for this mobilizer.

The value is given as a Vec6 but note that the supplied quantity is not a pair of vectors; it is a body fixed x-y-z Euler angle sequence in radians, followed by a position vector in the last three elements. The default is q=0 unless overridden.

See also:: setDefaultTransform()

const Vec6& SimTK::MobilizedBody::Bushing::getQ ( const State & state ) const

Obtain the current value for this mobilizer's generalized coordinates q from the given State, which must be realized through Stage::Model (these are state variables).

const Vec6& SimTK::MobilizedBody::Bushing::getQDot ( const State & state ) const

Obtain the current value for this mobilizer's generalized coordinate time derivatives qdot from the given State, which must be realized through Stage::Velocity.

These are the three Euler angle time derivatives followed by the three measure numbers of the velocity vector v_FM giving the velocity of M's origin Mo taken in the F frame. For the Bushing mobilizer, qdot has the same numerical values as the generalized speeds u, but unlike u, qdot is not a state variable.

const Vec6& SimTK::MobilizedBody::Bushing::getQDotDot ( const State & state ) const

Obtain the current value for this mobilizer's generalized coordinate second time derivatives qdotdot from the given State, which must be realized through Stage::Acceleration.

These are Euler angle second time derivatives followed by the three measure numbers of the vector a_FM giving the acceleration of M's origin Mo taken in the F frame. For the Bushing mobilizer, qdotdot=udot.

const Vec6& SimTK::MobilizedBody::Bushing::getU ( const State & state ) const

Obtain the current value for this mobilizer's generalized speeds u from the given State, which must be realized through Stage::Model (these are state variables).

For the Bushing joint, these are the time derivatives of q, that is, u=qdot.

const Vec6& SimTK::MobilizedBody::Bushing::getUDot ( const State & state ) const

Obtain the current value for this mobilizer's generalized accelerations udot (=d/dt u) from the given State, which must be realized through Stage::Acceleration.

For the Bushing joint, these are the time derivatives of qdot, that is, udot=qdotdot.

void SimTK::MobilizedBody::Bushing::setQ	(	State &	state,
		const Vec6 &	q
	)		const

Set new values for this mobilizer's generalized coordinates q in the given state.

This invalidates Stage::Position and above. The new value is given as a Vec6, but is interpreted as a body fixed x-y-z Euler angle sequence in radians, followed by the three measure numbers of the position vector p_FM giving the location of the M frame origin Mo measured from and expressed in the F frame.

See also:: MobilizedBody::setQToFitTransform()

void SimTK::MobilizedBody::Bushing::setU	(	State &	state,
		const Vec6 &	u
	)		const

Set new values for this mobilizer's generalized speeds u in the given state.

This invalidates Stage::Velocity and above. The new value is given as a Vec6, but is interpreted as the time derivatives of a body fixed x-y-z Euler angle sequence in radians/time (not an angular velocity!), followed by the three measure numbers of the velocity vector v_FM giving the velocity of the M frame origin Mo measured and expressed in the F frame. For the Bushing mobilizer, these are just the time derivatives of the generalized coordinates q, that is, u=qdot.

See also:: MobilizedBody::setUToFitVelocity()

const Vec6& SimTK::MobilizedBody::Bushing::getMyPartQ	(	const State &	state,
		const Vector &	qlike
	)		const

Given a vector in the System's generalized coordinate basis, extract the six q's belonging to this mobilizer.

const Vec6& SimTK::MobilizedBody::Bushing::getMyPartU	(	const State &	state,
		const Vector &	ulike
	)		const

Given a vector in the System's generalized speed basis, extract the six u's belonging to this mobilizer.

Vec6& SimTK::MobilizedBody::Bushing::updMyPartQ	(	const State &	state,
		Vector &	qlike
	)		const

Given a writable vector in the System's generalized coordinate basis, extract a writable reference to the six q's in that vector that belong to this mobilizer.

Vec6& SimTK::MobilizedBody::Bushing::updMyPartU	(	const State &	state,
		Vector &	ulike
	)		const

Given a writable vector in the System's generalized speed basis, extract a writable reference to the six u's in that vector that belong to this mobilizer.

The documentation for this class was generated from the following file:

MobilizedBody_Bushing.h
