SimTK::Constraint::Custom Class Reference

The handle class Constraint::Custom (dataless) and its companion class Constraint::Custom::Implementation can be used together to define new Constraint types with arbitrary properties. More...

#include <Constraint.h>

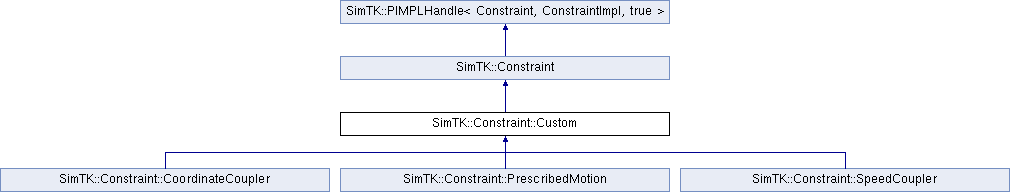

Inheritance diagram for SimTK::Constraint::Custom:

List of all members.

Classes
class	Implementation
	This is the abstract base class for the implementation of custom constraints. See Constraint::Custom for more information. More...
Public Member Functions
	Custom (Implementation *implementation)
	Create a Custom Constraint.
	Custom ()
	Default constructor creates an empty handle.
	SimTK_INSERT_DERIVED_HANDLE_DECLARATIONS (Custom, CustomImpl, Constraint)
Protected Member Functions
const Implementation &	getImplementation () const
Implementation &	updImplementation ()

---

Detailed Description

The handle class Constraint::Custom (dataless) and its companion class Constraint::Custom::Implementation can be used together to define new Constraint types with arbitrary properties.

To use it, create a class that extends Constraint::Custom::Implementation. You can then create an instance of it and pass it to the Constraint::Custom constructor:

Constraint::Custom myConstraint(new MyConstraintImplementation( args ));

Alternatively, you can also create a new Handle class which is a subclass of Constraint::Custom and which creates the Implementation itself in its constructors.

class MyConstraint : public Constraint::Custom {
public:
  MyConstraint( args ) : Constraint::Custom(new MyForceImplementation( args )) {
  }
}

This allows an end user to simply write

MyConstraint( args );

and not worry about implementation classes or creating objects on the heap. If you do this, your Constraint::Custom subclass must not have any data members or virtual methods. If it does, it will not work correctly. Instead, store all data in the Implementation subclass.

---

Constructor & Destructor Documentation

SimTK::Constraint::Custom::Custom

(

Implementation *

implementation

)

[explicit]

Create a Custom Constraint.

Parameters:

implementation

The object which implements the custom constraint. The Constraint::Custom takes over ownership of the implementation object, and deletes it when the Constraint itself is deleted.

SimTK::Constraint::Custom::Custom

(

)

[inline]

Default constructor creates an empty handle.

---

Member Function Documentation

SimTK::Constraint::Custom::SimTK_INSERT_DERIVED_HANDLE_DECLARATIONS	(	Custom	,
		CustomImpl	,
		Constraint
	)

const Implementation& SimTK::Constraint::Custom::getImplementation

(

)

const [protected]

Implementation& SimTK::Constraint::Custom::updImplementation

(

)

[protected]

---

The documentation for this class was generated from the following file:

• Constraint.h
